Toothpaste mixer
Toothpaste mixer as a semi solid equipment are suitable for the pharmaceutical & cosmetic industries for making only toothpaste including white toothpaste and clear toothpaste.
- Capacity: 1000-3000L (Alao can as per customer requirement)
- Material: material contact part SS316L, material non-contact part SS304.
- Customized service: to provide and design total solution as per customer URS
Toothpaste mixer including:
- Vacuum mixer machine
- Pre-mixing tank for sorbitol etc
- Vacuum system, we provide best vacuum pump In China to keep material in good.
- Control system
- Platform made from SS304

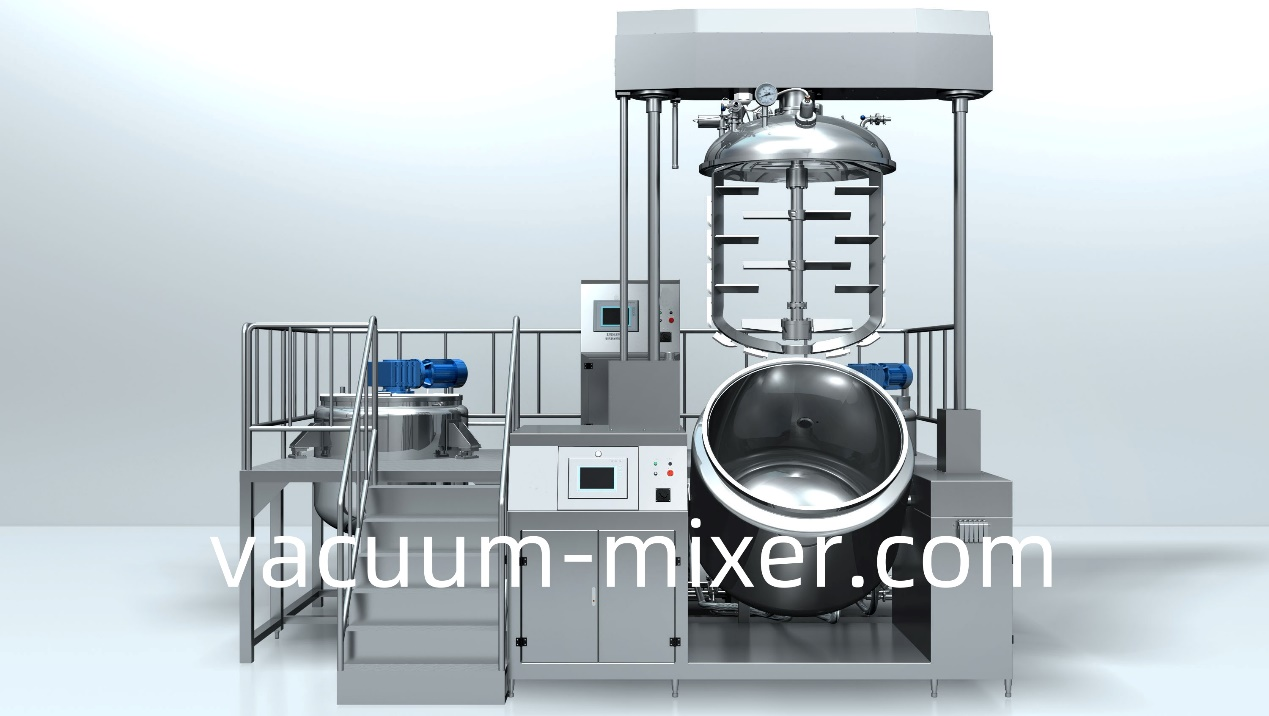

Vacuum toothpaste mixer machine:
- Slow mixer 20-40rpm with PTFE scraper
- High shear mixer 960rpm
- Heating: normally no need
- Pressure: chamber-0.095Mpa to 0.09Mpa, jacket 0.3Mpa for steam (standard type)
- Upper cover lifting by hydraulic or fixed lid.
- Safety limit switch for safety operation
- Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.
Water and oil pre-mixing tank
- High shear mixer 960rpm or slow mixer 60rpm
- Heating by steam or electricity
- Pipeline for material transfer to vacuum toothpaste mixer machine
Powder mixer
- Material can be mixed uniformly
- and then transfer to vacuum toothpaste mixer machine
Vacuum system:
- Water ring type vacuum pump
- Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or rotor pump for material out.
(more information please contact us)
